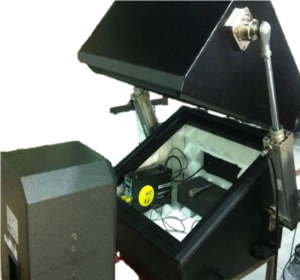

Anechoic Chamber--PB2

  • Description
PB2 test chamber is special designed for the acoustic testing of consumer products. (like: Headphone/ Headset/Tablet/NB/Smart Phone…etc). The chamber can provide a reliable and stable test environment. There are several reserved connection interface for audio equipment like USB port and one I/O port is reserved for automatic control.
  • Features

1. High isolation against background noise
2. Uniform sound field across the measurement plane
3. Sound Isolation Ability: >40 dB (A-Weighting) SPL ref. 20u Pa
4. Space for under 13” pad/li>
5. Customization Fixture

Outside Dimension L：700mm * W：800mm * H：600mm
Inside Dimension L：550mm * W：650mm * H：450mm
Net Weight ~ 340 Kg
Construction Aluminum
Power Request 100-240V,50/60Hz,2A
Sound Insulation Ability > 40dB(A-Weighting) SPL ref. 20uPa
Interface Default-BNC*10,USB*2,RJ45*1,DB-9pin*1,Power jack / or custoner assign
Operation Air Cylinder Automatic Control
