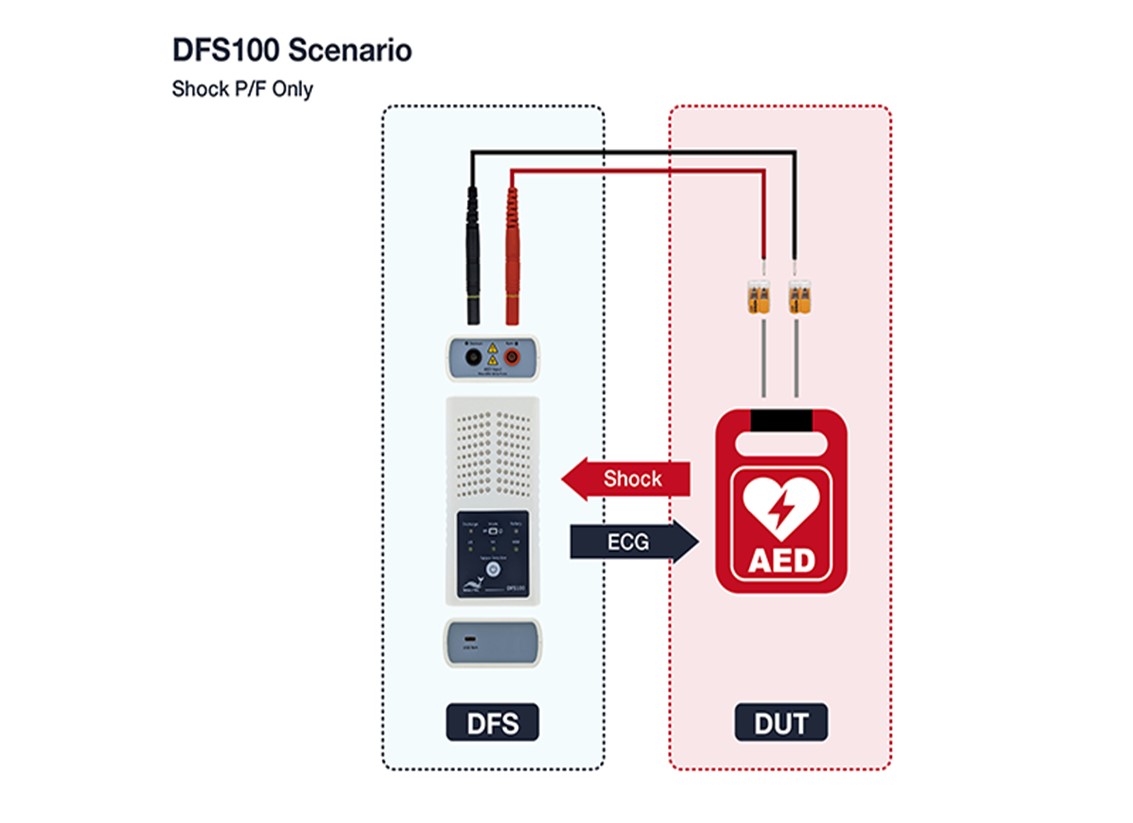

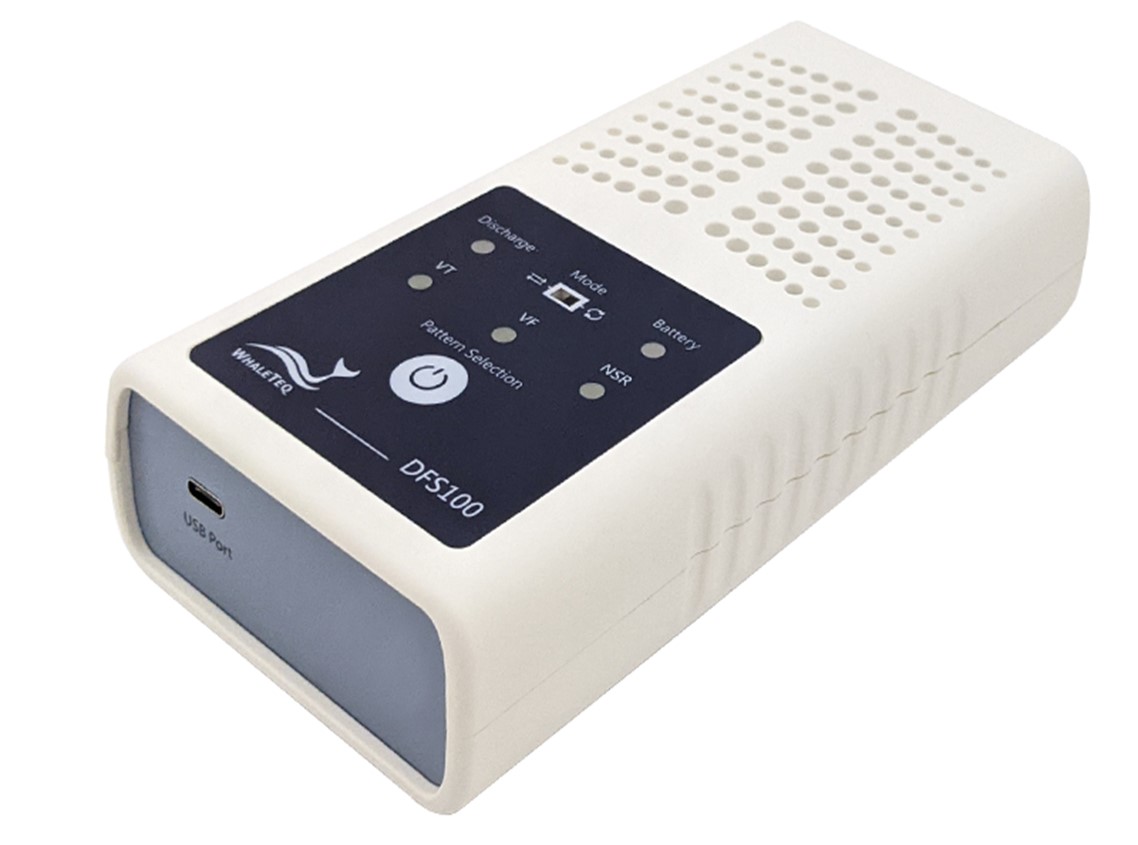

The AED inspection tester easily and quickly verifies whether the installed AED is functioning normally. It is suitable for all AED brands on the market and is dedicated to after-sales service. It generates three kinds of ECG signals, VT, VF, and NSR. In addition, it can receive AED defibrillation shocks. The user may define pass-criteria of AED shock energy to ensure that the AED works in the normal range.

Overview

  • Applicable to all AED brands on the market
  • With 3 ECG modes: VT (ventricular tachycardia), VF (ventricular fibrillation) or NSR (normal sinus rhythm)
  • The colors of the LED light indicate whether the shock energy meets self-defined pass-criteria
  • Self-defined pass-criteria range can be adjusted between 40 and 360 joules
  • Arbitrary connection without distinguishing polarity
  • The product is only 330g and can be operated with one hand
  • Plenty of air outlet improve heat dissipation and dust-proof
  • Safety design in line with international standards to ensure user safety
  • Detachable cables for easy storage
  • Note: The DFS100 PC Software is solely for customized setting. It does not include testing functions.



Specification

Energy Measurement Specifications ECG Signal Specifications

General Specifications

Compliance Specifications
Items Specifications Items Specifications Items Specifications Items Specifications
Maximum Energy Range : Up to 600J Waves Ventricular Fibrillation, Ventricular Tachycardia (≥ 240bpm) Temperature Operating : 0°C to 50°C (32°F to 122°F) Safety Standards CE : IEC / EN61010-1:2010 + A1:2016;Pollution degree 2
Voltage Range : Up to 5000Vp Normal Sinus Rhythm (NSR) Set at 80BPM, 3mV Storage : -20°C to +60°C (-4°F to +140°F) 61010-2-030:2017
Accuracy : ± (1% of reading +2V)     Humidity 10% to 90% non-condensing Electromagnetic Compatibility Standards (EMC) FCC : EMC P15B
Load Resistance Resistance : 50Ω     Communications USB only
Maximum Average Power 12 W, equivalent to 1 defib pulse of 360 J every 30 seconds     Type C connector
Self-defined pass criteria range 40 ~ 360J     Power 9V alkaline battery * 1 (no charger)
        Mechanical Housing: ABS Plastic
        Size (L x W x H):17.0cm x 8.55cm x 4.0cm
        Weight: 330g
